Aura
The RED DOT Design Award Winning “Aura” low care bed from Betten Malsch strikes the perfect balance between sophisticated design and functionality.

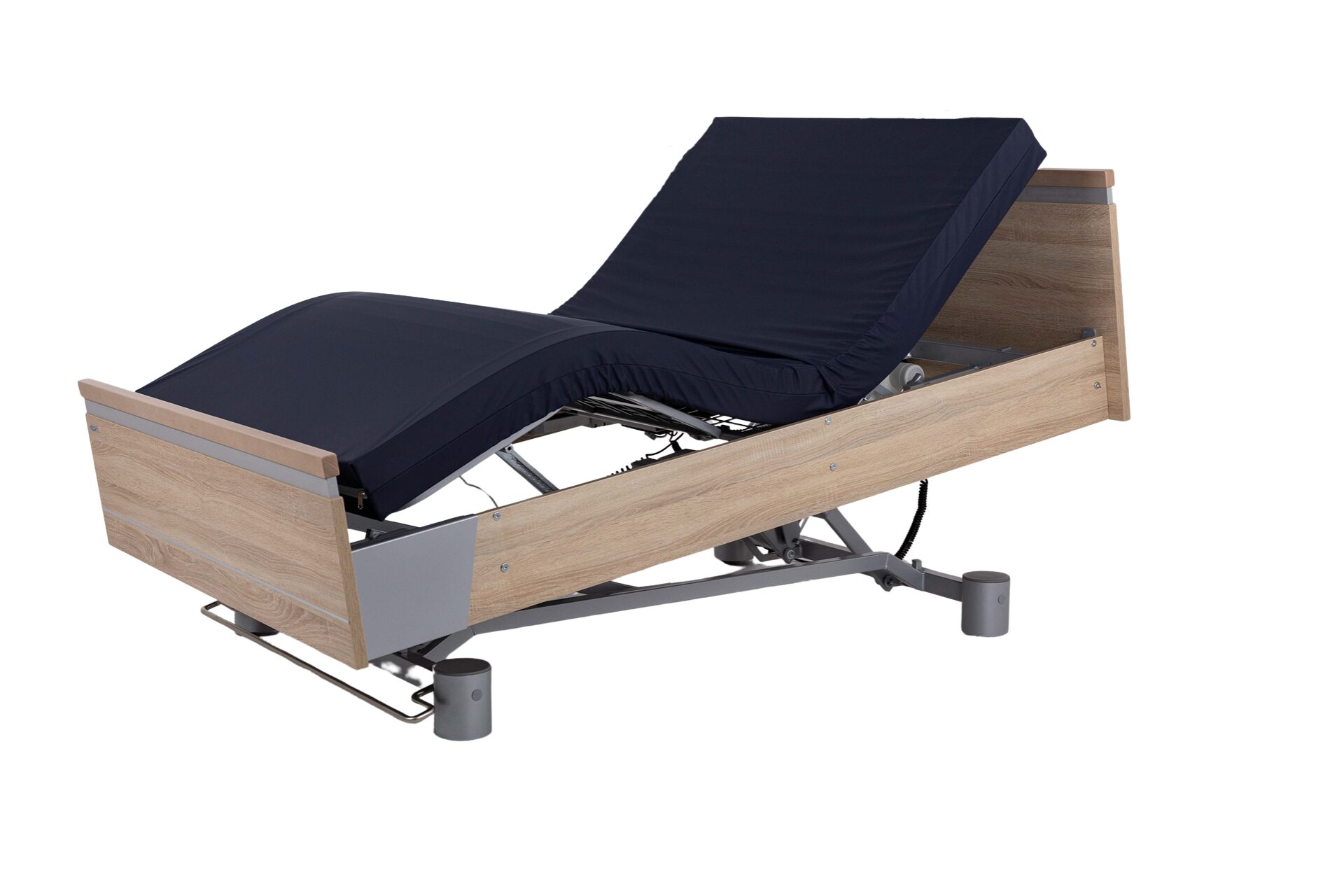

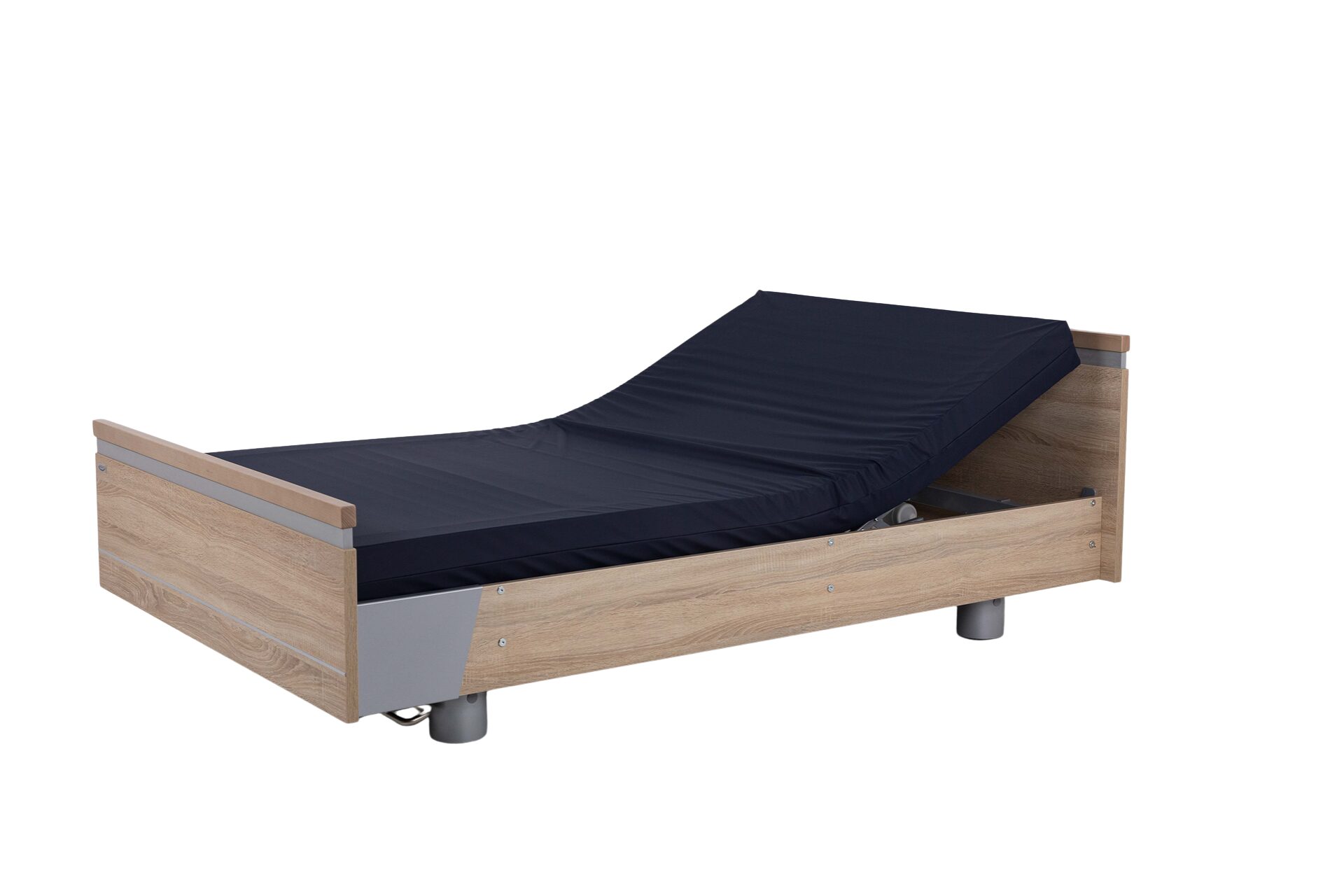

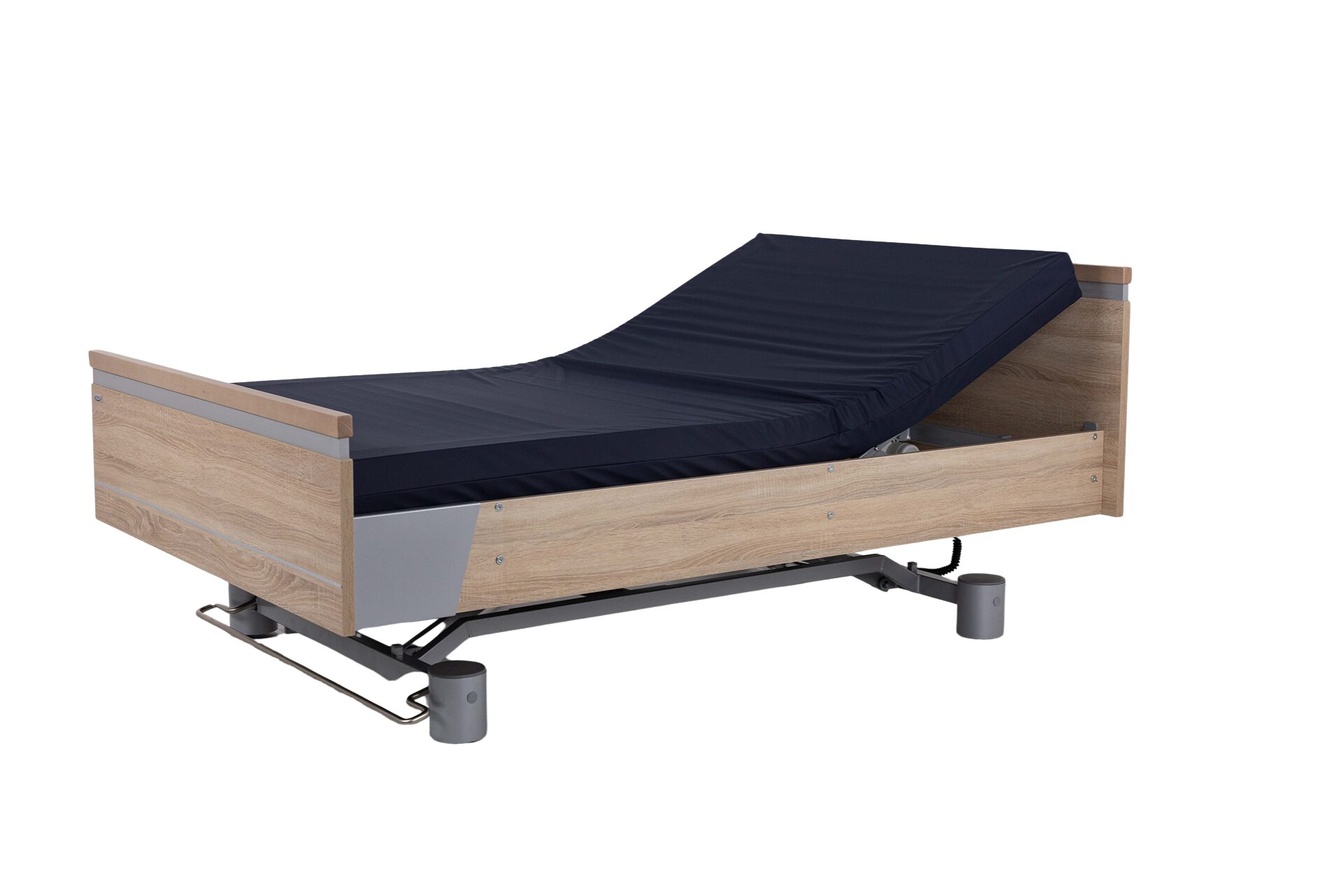

With a low position of just 25cm, the “Aura” is recommended as a fall prevention model. It’s centrally braked, concealed castors offer optimum mobility without compromising the bed’s stunning home-like character. With all of the features you will need from a care bed, such as backrest, knee break, Trendelenburg tilt in a forward and reverse direction. As well as the comfort seat and transfer/hoist positions which are all positioned using a touch of a button on the easy to use hand control.
Loading...
The RED DOT Design Award Winning “Aura” low care bed from Betten Malsch strikes the perfect balance between sophisticated design and functionality.
With a low position of just 25cm, the “Aura” is recommended as a fall prevention model. It’s centrally braked, concealed castors offer optimum mobility without compromising the bed’s stunning home-like character. With all of the features you will need from a care bed, such as backrest, knee break, Trendelenburg tilt in a forward and reverse direction. As well as the comfort seat and transfer/hoist positions which are all positioned using a touch of a button on the easy to use hand control.

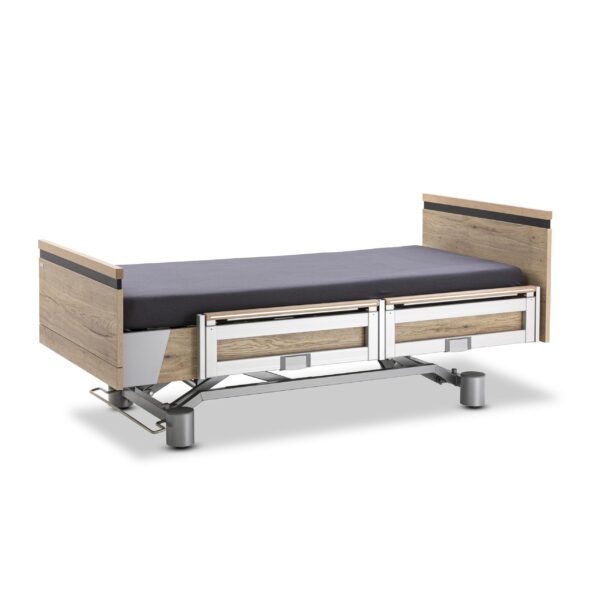

The innovative side rail’s intentional external mounting meets the model’s superior design standards, facilitating efficient, hygienic preparation and providing additional mounting options for accessories when lowered. The redesigned optional CPR release is easy to reach in all side rail positions as a result. The newly-developed, integrated bed extension ensures that the reclining surface can be expanded by up to 20cm quickly and easily without compromising the appearance. No tools or additional protectors are required in the process.

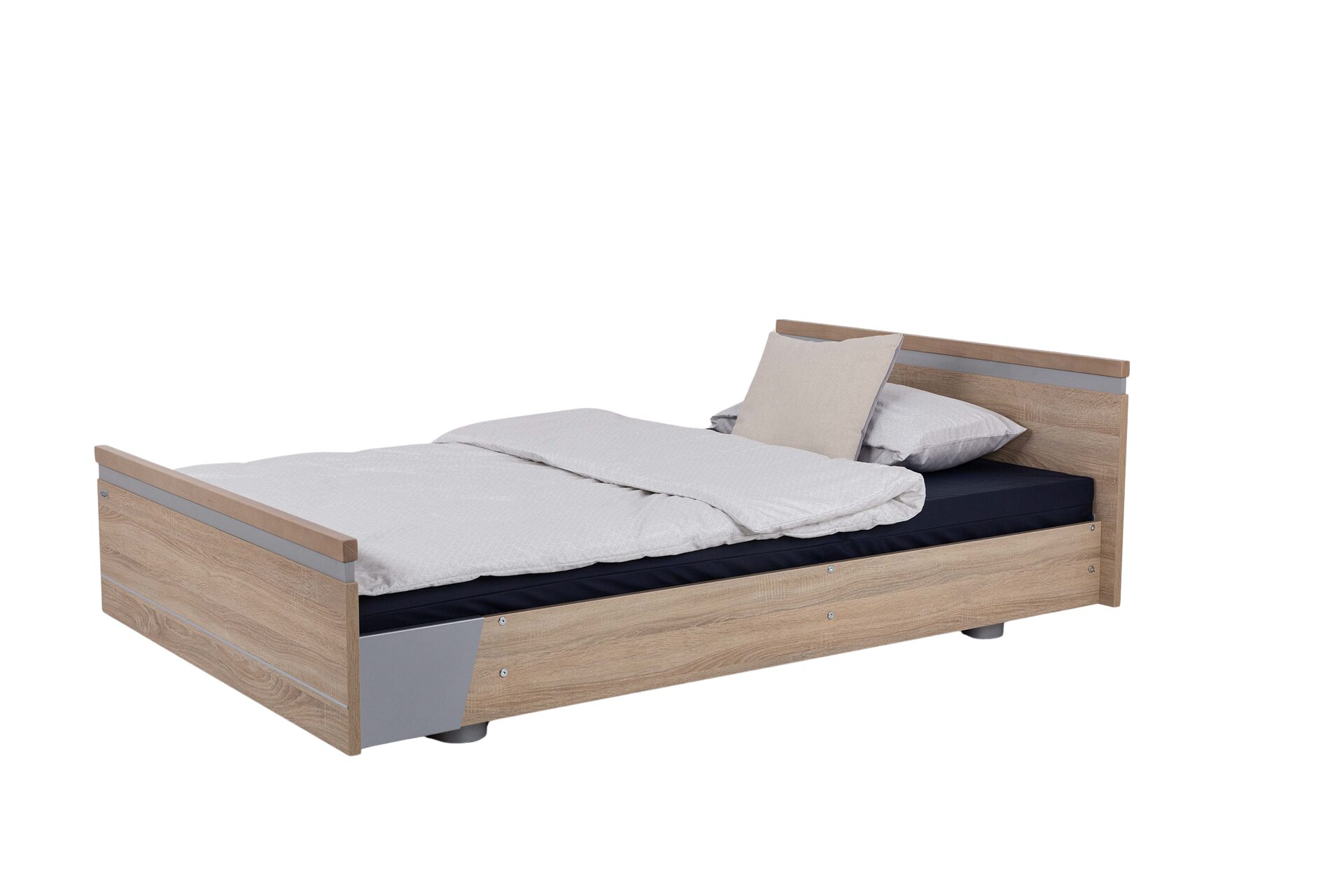

The “Aura” comes with standard mesh decking panels which can be removed for easy cleaning and has many standard features that make this care bed a truely sophisticated superior piece of bedroom furniture.
| Low position | 25cm |
|---|---|
| Working height / Care height | 82cm |
| Falls prevention | Standard |
| Transfer position | Standard |
| Comfort sitting position / hoist position | Standard |
| Auto contouring | Standard |
| Mattress regression | Standard |
| Reverse Trendelenburg positioning (lockable) | Standard |
| Trendelenburg positioning (lockable) | Standard |
| Wall hugging low to high to low functionality | Standard |
| CPR emergency lowering | Optional |
| Comfort mounting height | N/A |
| Bed extension 10cm /20cm | Standard |
| Double castors | 50mm |
| Hidden castors | Standard |
| Single castors | N/A |

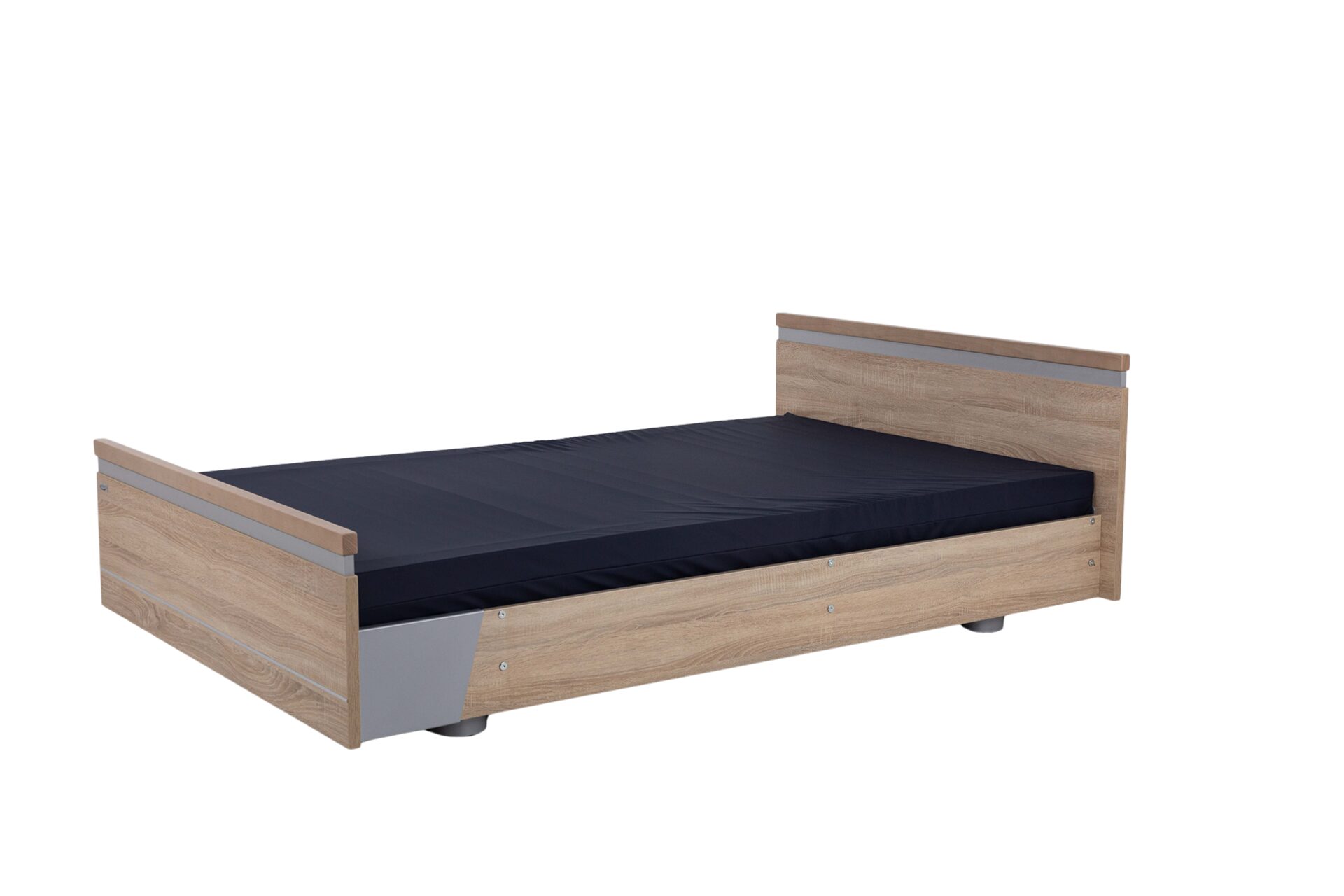

| Central brake | Standard |
| Axil brake | N/A |
| EVGS side rails (with one-hand operation) | Optional |

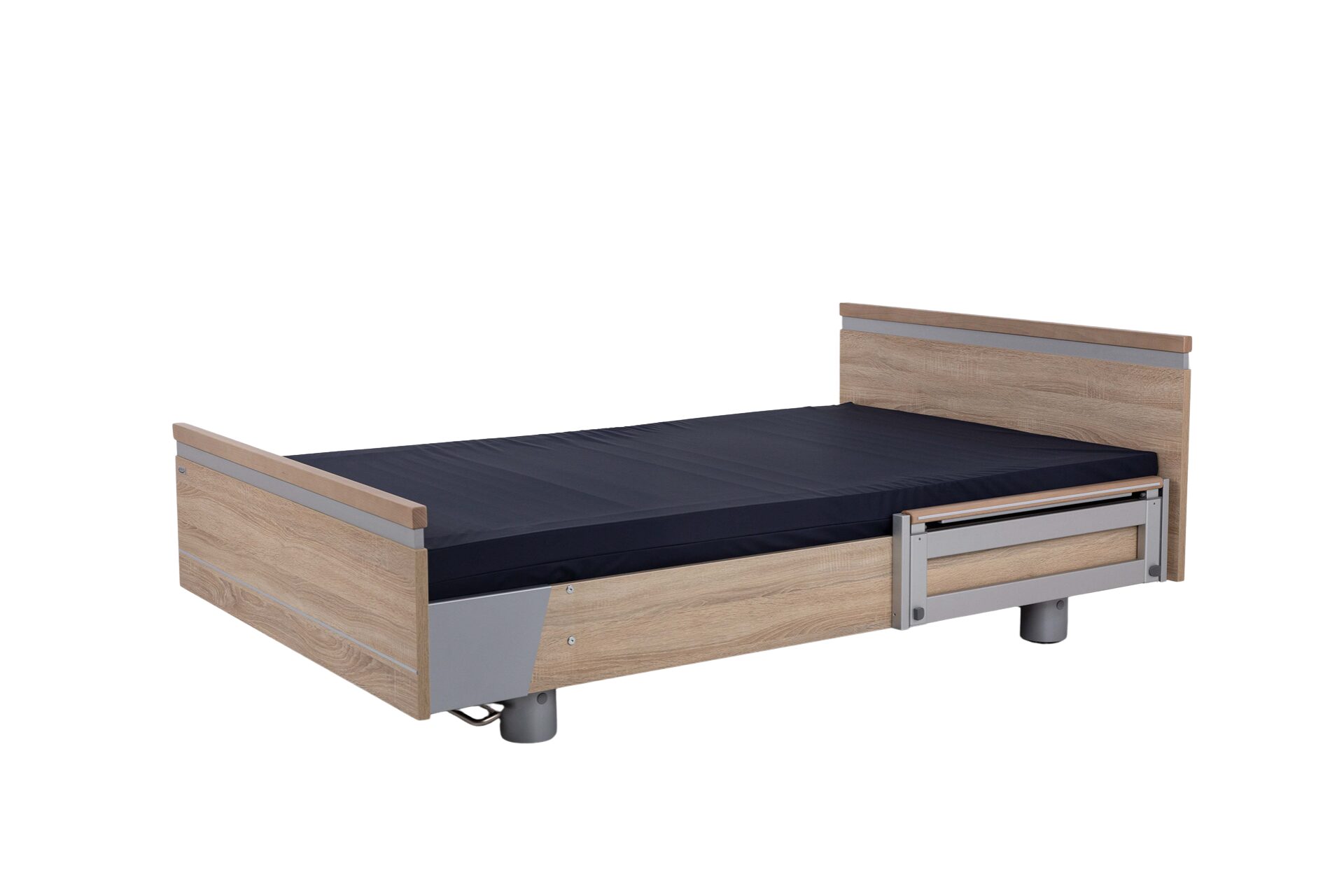

| Vertical VGS side rails | Standard |
| Fold down GS side rails | N/A |
| Full-length side rail | N/A |
| Drive system with safety extra-low voltage | Standard |
| Hand controller with locking function | Standard |
| Under bed lighting | Optional |
| Bed linen holder | Optional |
| Sleeping surface Single | 200 x 90cm |
| Outer dimensions Single | 200 x 102cm |
| Safe working load | Max. 225kg |
| Easy underneath access | 150mm |
| Total weight with bed extension and without accessories | approx 130 kg |
| Size | King Single 200 x 107 (Special Order), Single 200 x 90 (Special Order), Wide Single (200 x 120cm) |
Key Facts & Specifications
- 4 Way Electric Adjustable Mesh Decking Bed Base, for good air circulation and removeable for cleaning purposes
- Vertically-adjustable side rails (VGS) – bed can have no rails or any number 1-4 split rails
- Deeper side panels to host VGS rail brackets and hide undercarriage

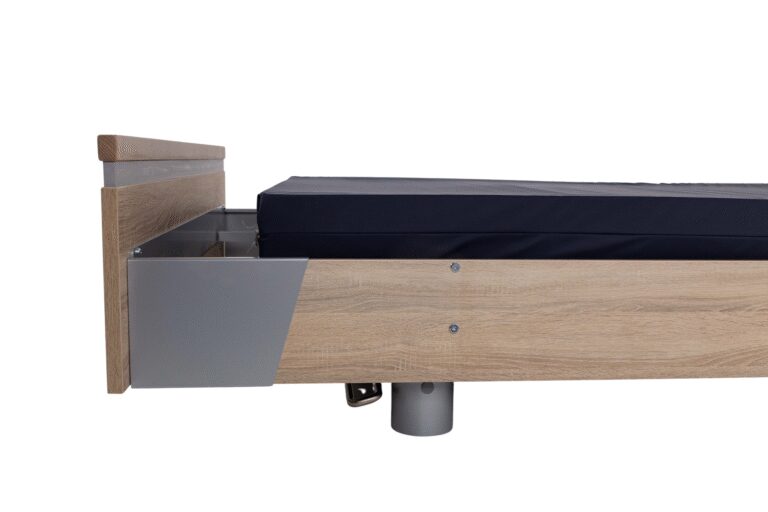

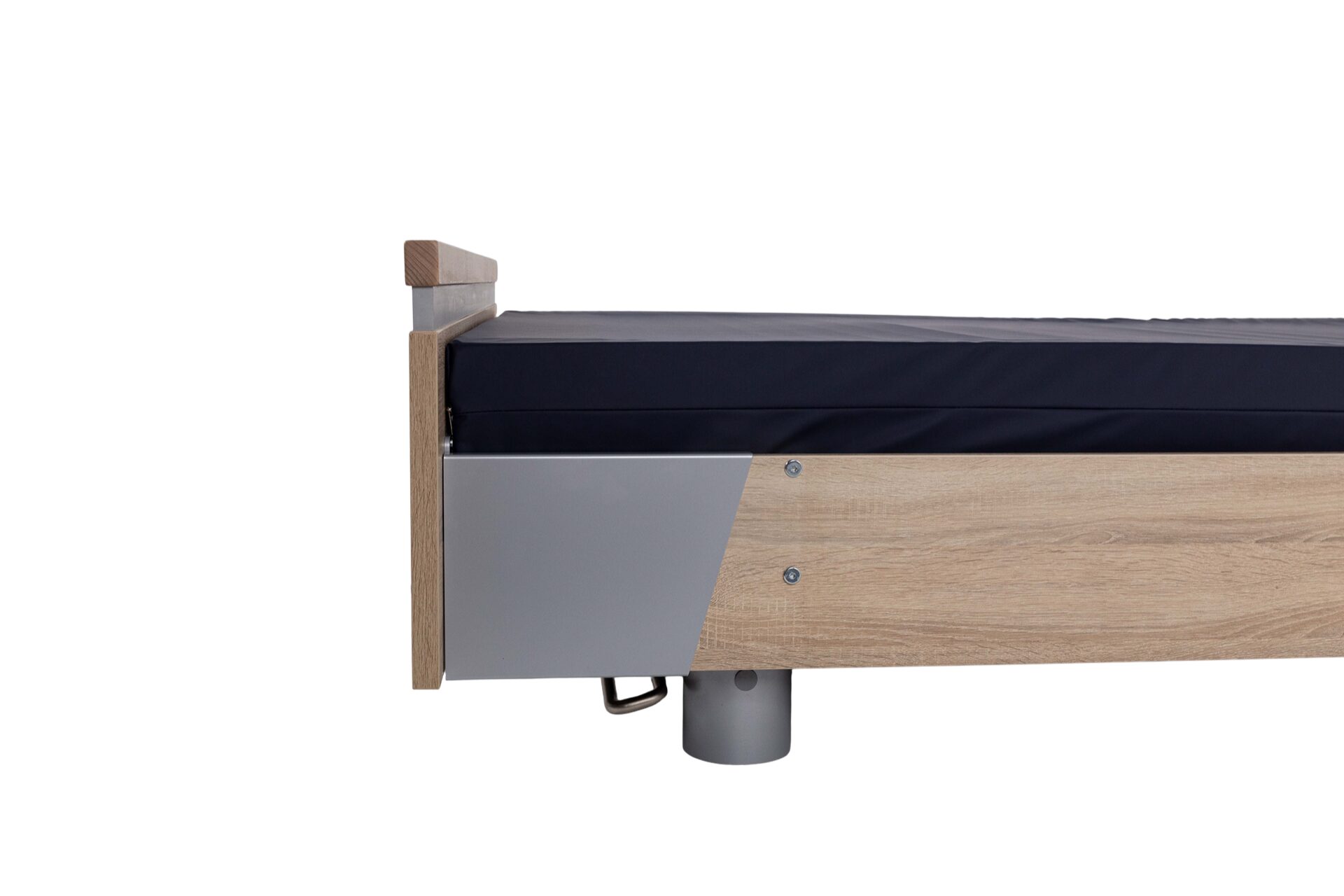

- Integrated bed length extension – 10cm and 20cm
- Slide panels each side of the bed end to ensure no gaps when bed is extended
- Mattress compensation / auto regression technology to eliminate sheering and friction
- Auto contouring function
- Extra foot section manual 10 position adjustability
- Wall hugging high/low mobilising function

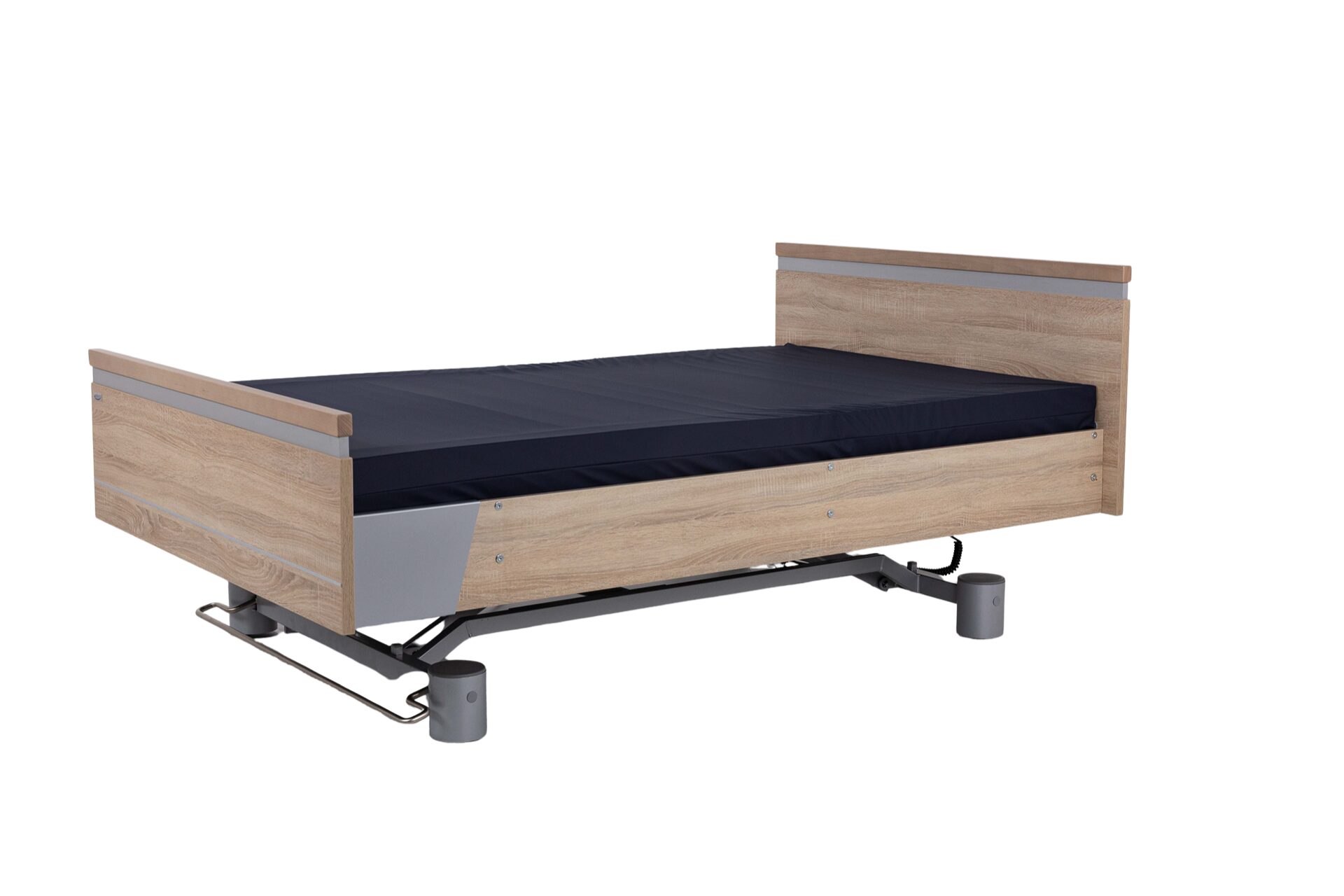

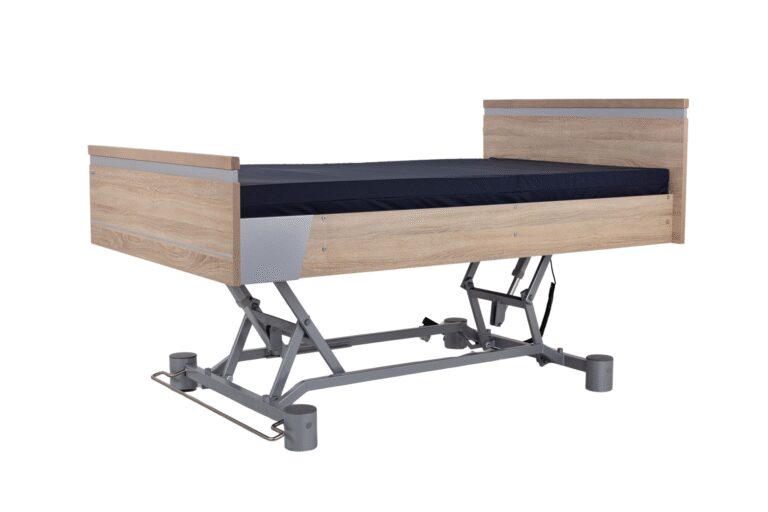

- High/Low variation -25cm low level care-bed for fall prevention up to 82cm (without mattress) adjustment height level for carer access requirements
- 150mm under bed clearance

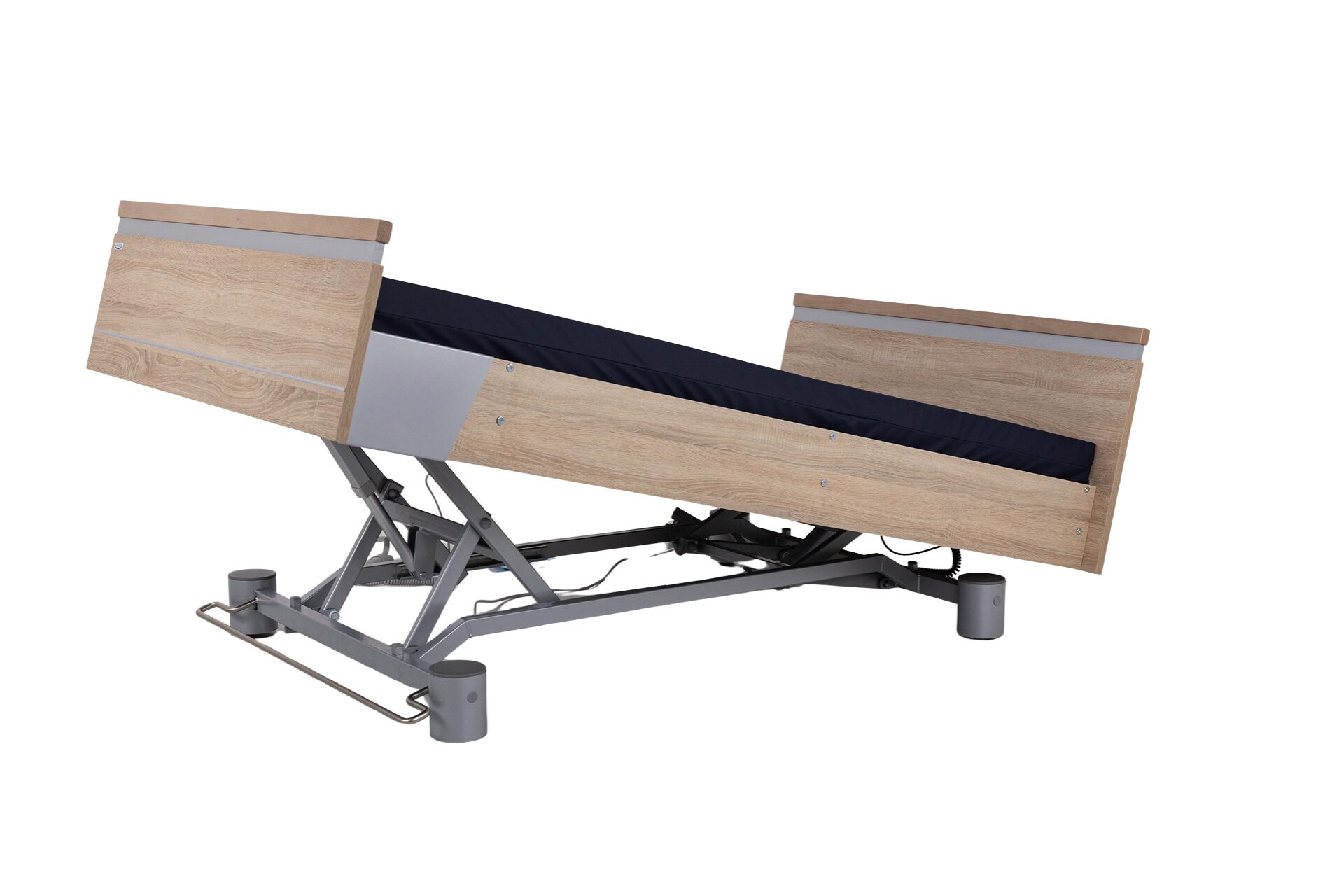

- Trendelenburg forward and reverse tilt
- Pre-set hand control comfort position
- Pre-set hoist & comfort position
- Lockable hand control – and backlit for night-time use
- Low-voltage system with separated transformer plug for increased safety for occupants and care staff

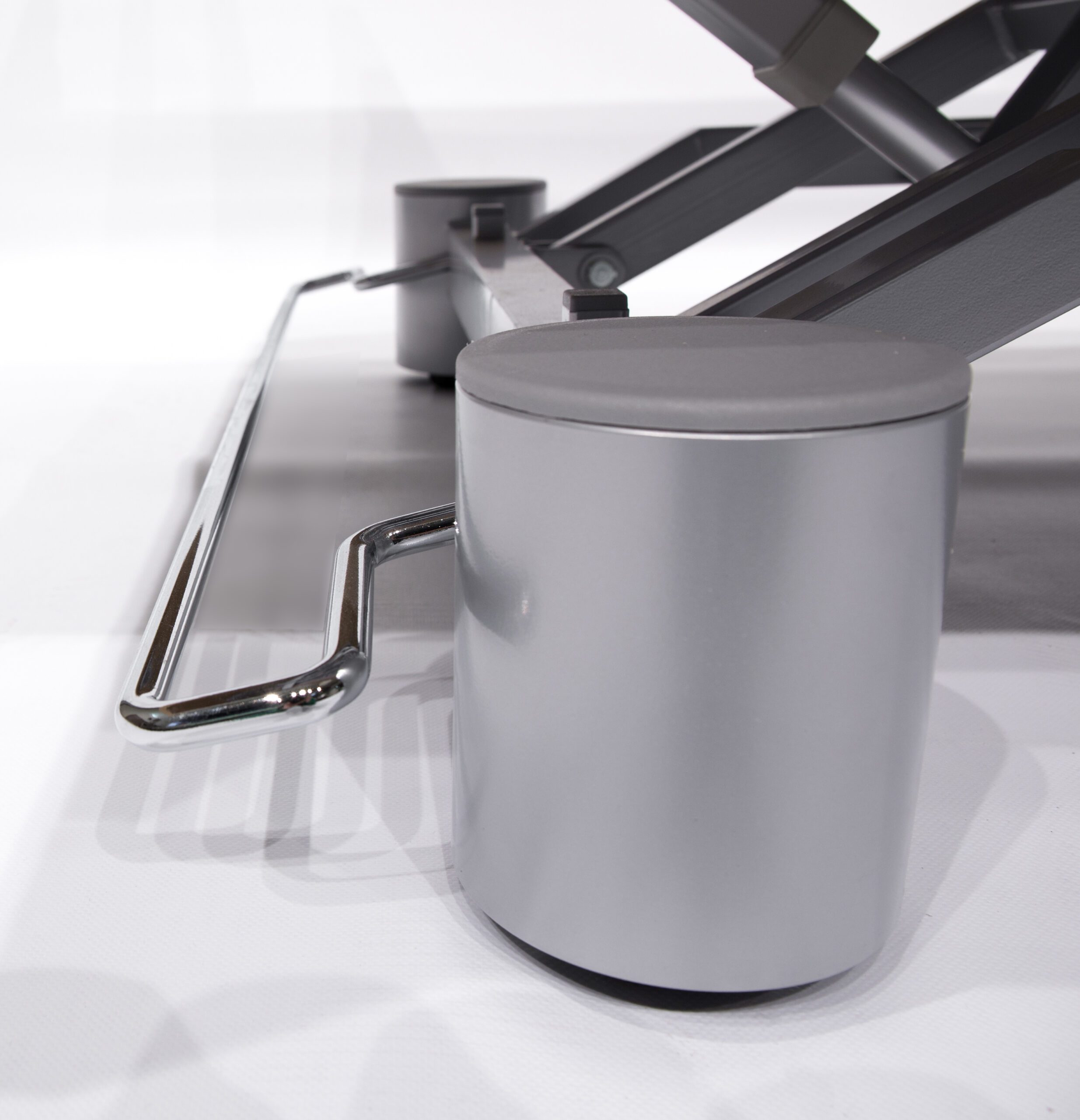

- Central locking function – cylinder covered 50mm double castors
- 150mm underbed clearance
- Pre-installed fittings for light fixture / self-help pole / IV pole etc.
- Compatible with specialist mattress systems
- AURA specific surround design and colour
- Load capacity 225kgs.
STANDARDS COMPLIANCE
- DIN EN ISO 13485:2016 A/C 2018 – Medical devices – Quality management systems – Requirements for regulatory purposes (ISO 13485:2016)
- DIN EN 1970:2000 + A1:2007 – Adjustable beds for disabled persons
- DIN EN 60601-2-52:2010 – Particular requirements for basic safety and essential performance of electrically operated medical beds
The specified products were developed, manufactured and tested on the basis of the management system in accordance with:
- DIN EN ISO 9001:2015 certificate no. 73 100 1297
- DIN EN ISO 14001:2015 certificate no. 73 104 1297
Optional Extras
- CPR emergency back rest unlocking system
- Bed linen holder
- Integrated overbed light
- Underbed night light – motion and light sensored
- Self help pole
- Rail Covers – Padded or Mesh or combination of both
- Head and footend covers
Care & Warranty
Please see below for warranty and maintenance information across our Healthcare Bedding range:
WARRANTY INFORMATION
Our range of Malsch beds come with a 5-year warranty on the frame, alongside a 2-year warranty on the motor/electrics. Parts and labour are covered within the warranty. However, for clients outside of metro Perth there will be a labour/transport fee.
PRODUCT CARE & MAINTENANCE
For individual homecare use we recommend general cleaning of your bed frame and surround. Vacuuming the bed mechanisms to reduce dust build-up, and wiping down on a regular basis with a damp cloth and gentle cleaning solution as standard. Any oiling of nuts and bolts should be done with a silicon based oil e.g., WD-40 Specialist Silicone Spray. All purchases will receive a digital instruction manual when you receive delivery of your bed.
For care facilities, a deeper cleaning regime in line with aged care and disability facility standards is recommended. This includes at minimum the above.
SERVICING
We recommend that our customers conduct a service of their bed every 18 months to 2 years. A general bed service & maintenance can be booked within the Perth metropolitan area, with the first half-hour of labour charges at $195 inclusive of minor parts. In the unlikely event that further time is required or other parts are needed, additional cost of $25 per 15 minutes thereafter is applicable and required parts chargeable.
*** Please note, European Bedding abides by Australian Consumer Law, meaning our valued customers are always fully protected at all times. Whilst our products are known for their quality and reliability, we also provide a warranty to protect your purchase and to offer peace of mind.
