Gala

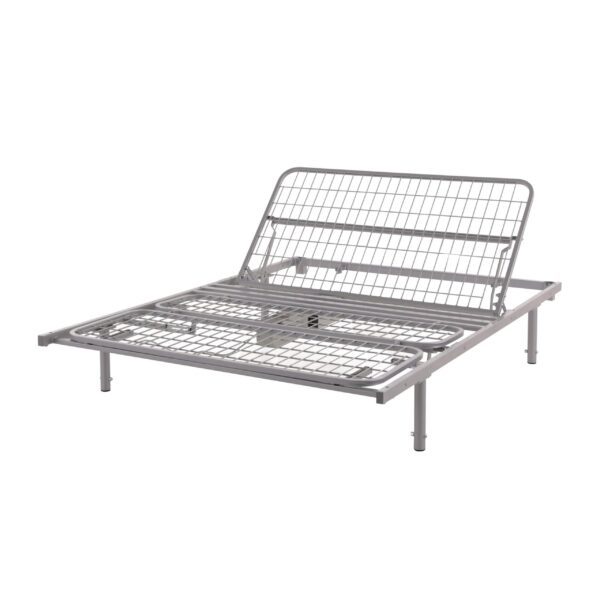

The Gala is ideal as a companion bed to the Ayleen 500 and Impulse beds or just on it’s own in single, king single and double sizes. It can be set within your existing bed frame surround or headboard. It comes with a wooden slatted base in the single version and as a mesh base in the king single and double versions allowing for excellent air circulation. Height adjustable legs are also included. The addition, as standard, of mattress compensation technology prevents one from sliding down the bed and thus reduces shear and friction. Limoss, German designed motor technology includes battery backup and lockable hand controls.
Note that all Gala beds can be later converted to have the high low function by fitting the high low undercarriage. The same motor and hand control can be used so you don’t have to pay for new parts.
Loading...
The Gala is ideal as a companion bed to the Ayleen 500 and Impulse beds or just on it’s own in single, king single and double sizes. It can be set within your existing bed frame surround or headboard. It comes with a wooden slatted base in the single version and as a mesh base in the king single and double versions allowing for excellent air circulation. Height adjustable legs are also included. The addition, as standard, of mattress compensation technology prevents one from sliding down the bed and thus reduces shear and friction. Limoss, German designed motor technology includes battery backup and lockable hand controls.
Note that all Gala beds can be later converted to have the high low function by fitting the high low undercarriage. The same motor and hand control can be used so you don’t have to pay for new parts.
| Low position | N/A |
|---|---|
| Working height / Care height | N/A |
| Falls prevention | N/A |
| Transfer position | N/A |
| Comfort sitting position / hoist position | N/A |
| Auto contouring | Standard |
| Mattress regression | Standard |
| Trendelenburg positioning (lockable) | N/A |
| Reverse Trendelenburg positioning (lockable) | N/A |
| Wall hugging low to high to low functionality | N/A |
| CPR emergency lowering | N/A |
| Comfort mounting height | 33cm |
| Bed extension 10cm /20cm | Optional |
| Double castors | N/A |
| Hidden castors | N/A |
| Single castors | N/A |
| Central brake | N/A |
| Axil brake | N/A |
| EVGS side rails (with one-hand operation) | N/A |
| Vertical VGS side rails | N/A |
| Fold down GS side rails | N/A |
| Full-length side rail | N/A |
| Drive system with safety extra-low voltage | Standard |
| Hand controller with locking function | Standard |
| Under bed lighting | Optional |
| Bed linen holder | N/A |
| Sleeping surface Single | 200 x 90cm |
| Outer dimensions Single | 206 x 90cm |
| Safe working load | Max. 180kg |
| Easy underneath access | No restriction |
| Total weight with bed extension and without accessories | approx 120 kg |
| Size | Single (200 x 90cm), King Single (200 x 107cm), Double (200 x 140cm) |
Key Facts & Specifications
- 4 Way Electric Adjustable base
- Reclining Surface – Flexible beech wood slats (Single size) or mesh decking (King Single & Double size ) for good air circulation
- Height adjustable legs
- Mattress compensation / auto regression technology to eliminate sheering and friction
- Auto contouring comfort feature function
- Extra foot section manual 10 position adjustability
- Robust chassis
- Low-voltage system for increased safety for occupants and care staff
- Simple cable concept to avoid cable clutter
- Pre-installed fittings for light fixture / self-help pole / IV pole etc.
- Compatible with specialist mattress systems
- Gala wood-laminate or fabric surround design and colour
- Safe working load of 180kg
STANDARDS COMPLIANCE
- DIN EN ISO 13485:2016 A/C 2018 – Medical devices – Quality management systems – Requirements for regulatory purposes (ISO 13485:2016)
- DIN EN 1970:2000 + A1:2007 – Adjustable beds for disabled persons
- DIN EN 60601-2-52:2010 – Particular requirements for basic safety and essential performance of electrically operated medical beds
The specified products were developed, manufactured and tested on the basis of the management system in accordance with:
- DIN EN ISO 9001:2015 certificate no. 73 100 1297
- DIN EN ISO 14001:2015 certificate no. 73 104 1297
Optional Extras
Lockable castors
Care & Warranty
Please see below for warranty and maintenance information across our Healthcare Bedding range:
WARRANTY INFORMATION
Our range of Malsch beds come with a 5-year warranty on the frame, alongside a 2-year warranty on the motor/electrics. Parts and labour are covered within the warranty. However, for clients outside of metro Perth there will be a labour/transport fee.
PRODUCT CARE & MAINTENANCE
For individual homecare use we recommend general cleaning of your bed frame and surround. Vacuuming the bed mechanisms to reduce dust build-up, and wiping down on a regular basis with a damp cloth and gentle cleaning solution as standard. Any oiling of nuts and bolts should be done with a silicon based oil e.g., WD-40 Specialist Silicone Spray. All purchases will receive a digital instruction manual when you receive delivery of your bed.
For care facilities, a deeper cleaning regime in line with aged care and disability facility standards is recommended. This includes at minimum the above.
SERVICING
We recommend that our customers conduct a service of their bed every 18 months to 2 years. A general bed service & maintenance can be booked within the Perth metropolitan area, with the first half-hour of labour charges at $195 inclusive of minor parts. In the unlikely event that further time is required or other parts are needed, additional cost of $25 per 15 minutes thereafter is applicable and required parts chargeable.
*** Please note, European Bedding abides by Australian Consumer Law, meaning our valued customers are always fully protected at all times. Whilst our products are known for their quality and reliability, we also provide a warranty to protect your purchase and to offer peace of mind.
