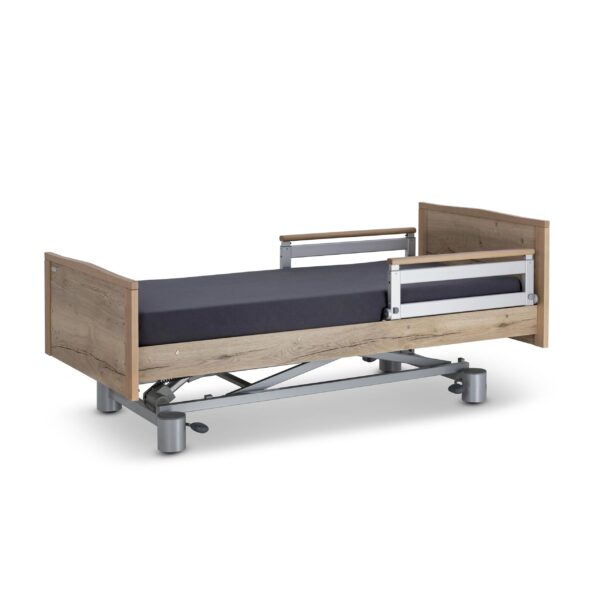

Impulse 400 – low to floor bed
Our premium care bed – the Impulse Series are equipped with a comprehensive range of features and can be adapted flexibly to suit virtually every situation. Our beds’ technical features and high quality as well as stable designs offer you consistency and long term planning. The Impulse Series are stylish four section electrically operated home-like low to the floor beds with universal features. They have been designed and built with every need taken into consideration.
Loading...
The Impulse 400 low care bed allows the reclining surface to be lowered to a floor height of just 25cm. There is almost no risk of injury to occupants in this position in the event of a fall. The Malsch low care beds are equipped with a superior range of features during the manufacturing process, from a comfort seat positioning and mobilising side rail to the transfer position, which facilitates patients’ mounting and dismounting at an optimised seating height. As well as backrest and knee break, the Impulse 400 has Trendelenburg functions both in a forward and reverse direction.
The Impulse is available on its own or as part of a Companion Bed arrangement.
| Low position | 25cm |
|---|---|
| Working height / Care height | 82cm |
| Falls prevention | Standard |
| Transfer position | Standard |
| Comfort sitting position / hoist position | Standard |
| Auto contouring | Standard |
| Mattress regression | Standard |
| Reverse Trendelenburg positioning (lockable) | Standard |
| Trendelenburg positioning (lockable) | Standard |
| Wall hugging low to high to low functionality | Standard |
| CPR emergency lowering | Optional |
| Comfort mounting height | N/A |
| Bed extension 10cm /20cm | Optional |
| Double castors | 50mm |
| Hidden castors | Standard |
| Single castors | N/A |
| Central brake | Optional |
| Axil brake | Standard |
| EVGS side rails (with one-hand operation) | Optional |
| Vertical VGS side rails | Optional |
| Fold down GS side rails | Standard |
| Full-length side rail | Optional |
| Drive system with safety extra-low voltage | Standard |
| Hand controller with locking function | Standard |
| Under bed lighting | Optional |
| Bed linen holder | Optional |
| Sleeping surface Single | 200 x 90cm |
| Outer dimensions Single | 200 x 102cm |
| Safe working load | Max. 225kg |
| Easy underneath access | 150mm |
| Total weight with bed extension and without accessories | approx 110 / 130 kg |
| Size | Wide Single 200 x 120 (Special Order), Single (200 x 90cm), King Single (200 x 107cm) |
Key Facts & Specifications
- 4 Way electric adjustable mesh decking Bed Base, for good air circulation and removeable for cleaning purposes
- Mattress compensation / auto regression technology to eliminate sheering and friction
- Auto contouring function
- Extra foot section manual 10 position adjustability
- Wall hugging high/low mobilising function
- High/Low variation – 25cm low level care-bed for fall prevention up to 82cm (without mattress) adjustment height level for carer access requirements
- 150mm under bed clearance
- Trendelenburg forward and reverse tilt
- Pre-set hand control comfort position
- Pre-set hoist & comfort position
- Lockable hand control – and backlit for night-time use
- Low-voltage system with separated transformer plug for increased safety for occupants and care staff
- Duo locking function – cylinder covered 50mm double castors
- 150mm underbed clearance
- Pre-installed fittings for light fixture / self-help pole / IV pole etc.
- Compatible with specialist mattress systems
- Fold down split mobilising side rails (GS) or full continuous length rails – bed can have no rails or any number 1-4 split rails or a combination of split and continuous long rails
- Impulse surround design and colour- Load capacity 225kgs.
STANDARDS COMPLIANCE
- DIN EN ISO 13485:2016 A/C 2018 – Medical devices – Quality management systems – Requirements for regulatory purposes (ISO 13485:2016)
- DIN EN 1970:2000 + A1:2007 – Adjustable beds for disabled persons
- DIN EN 60601-2-52:2010 – Particular requirements for basic safety and essential performance of electrically operated medical beds
The specified products were developed, manufactured and tested on the basis of the management system in accordance with:
-
- DIN EN ISO 9001:2015 certificate no. 73 100 1297
- DIN EN ISO 14001:2015 certificate no. 73 104 1297
Optional Extras
- Integrated or retrofitted bed extension
- CPR emergency back rest unlocking system
- Integrated overbed light
- Underbed night light – motion and light sensored
- Self help pole
- Bedding storage (only in conjunction with integrated bed extension)
- Rail Covers – Padded or Mesh or combination of both
- Head and footend covers
Care & Warranty
Please see below for warranty and maintenance information across our Healthcare Bedding range:
WARRANTY INFORMATION
Our range of Malsch beds come with a 5-year warranty on the frame, alongside a 2-year warranty on the motor/electrics. Parts and labour are covered within the warranty. However, for clients outside of metro Perth there will be a labour/transport fee.
PRODUCT CARE & MAINTENANCE
For individual homecare use we recommend general cleaning of your bed frame and surround. Vacuuming the bed mechanisms to reduce dust build-up, and wiping down on a regular basis with a damp cloth and gentle cleaning solution as standard. Any oiling of nuts and bolts should be done with a silicon based oil e.g., WD-40 Specialist Silicone Spray. All purchases will receive a digital instruction manual when you receive delivery of your bed.
For care facilities, a deeper cleaning regime in line with aged care and disability facility standards is recommended. This includes at minimum the above.
SERVICING
We recommend that our customers conduct a service of their bed every 18 months to 2 years. A general bed service & maintenance can be booked within the Perth metropolitan area, with the first half-hour of labour charges at $195 inclusive of minor parts. In the unlikely event that further time is required or other parts are needed, additional cost of $25 per 15 minutes thereafter is applicable and required parts chargeable.
*** Please note, European Bedding abides by Australian Consumer Law, meaning our valued customers are always fully protected at all times. Whilst our products are known for their quality and reliability, we also provide a warranty to protect your purchase and to offer peace of mind.
