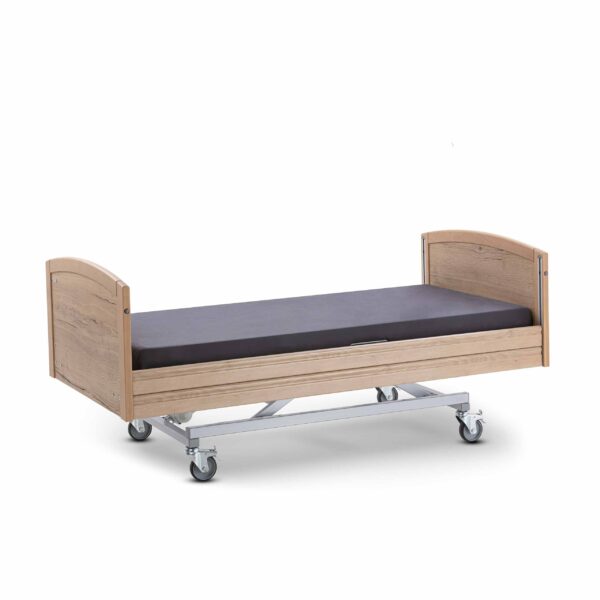

Ayleen 400
The Ayleen 400 is part of our beautiful homecare range of beds. An economical and stylish, reliable alternative to the basic or premium care beds, without compromising on safety and style. A four section electrically adjustable high low height variation of 40cm-80cm or 30cm-70cm, the Ayleen 400 features include the backrest, knee break and manually adjustable leg raise functions. As standard, this bed also includes mattress compensation technology preventing one from sliding down the bed and thus reduces shear and friction.
Loading...
Designed for domestic use, the Ayleen 400 comes with a metal mesh base allowing for excellent air circulation. The bed also has two wooden rails along each side of the bed which automatically lock in place when pulled up. With lockable castors and 160mm under bed clearance. Where the bed is to remain in place, the Ayleen 400 can also be placed on a set of feet and the height adjustment brought down as low as 30cm from the floor to frame. The Ayleen 400 represents affordability and quality all rolled into one.
| Low position | 40cm |
|---|---|
| Working height / Care height | 80cm |
| Falls prevention | N/A |
| Transfer position | N/A |
| Comfort sitting position / hoist position | N/A |
| Auto contouring | Standard |
| Mattress regression | Standard |
| Trendelenburg positioning (lockable) | N/A |
| Reverse Trendelenburg positioning (lockable) | N/A |
| Wall hugging low to high to low functionality | Standard |
| CPR emergency lowering | N/A |
| Comfort mounting height | 40cm |
| Bed extension 10cm /20cm | Optional |
| Double castors | N/A |
| Hidden castors | N/A |
| Single castors | 100mm |
| Central brake | N/A |
| Axil brake | N/A |
| EVGS side rails (with one-hand operation) | N/A |
| Vertical VGS side rails | N/A |
| Fold down GS side rails | Optional |
| Full-length side rail | Standard |
| Drive system with safety extra-low voltage | Standard |
| Hand controller with locking function | Standard |
| Under bed lighting | Optional |
| Bed linen holder | N/A |
| Sleeping surface Single | 200 x 90cm |
| Outer dimensions Single | 206 x 100cm |
| Safe working load | Max. 180kg |
| Easy underneath access | 145mm |
| Total weight with bed extension and without accessories | approx 120 kg |
| Size | King Single (200 x 107cm) |
Key Facts & Specifications
- 4 Way Electric Adjustable base
- Reclining Surface – Flexible beech wood slats (Single Size) mesh decking (King Single Size ) for good air circulation
- Full continuous length rails (CR)
- 40-80cm High-Low range with lockable castors
- 33-73cm High- Low range when fitted with stabilising feet to remain in position
- Mattress compensation / auto regression technology to eliminate sheering and friction
- Auto contouring comfort feature function
- Extra foot section manual 10 position adjustability
- Wall hugging high/low mobilising function
- Easy manoeuvrability on lockable castors
- Robust chassis
- Low-voltage system for increased safety for occupants and care staff
- Simple cable concept to avoid cable clutter
- 150mm underbed clearance
- Pre-installed fittings for light fixture / self-help pole / IV pole etc.
- Compatible with specialist mattress systems
- Ayleen wood-laminate surround design and colour
- Safe working load of 180kg
STANDARDS COMPLIANCE
- DIN EN ISO 13485:2016 A/C 2018 – Medical devices – Quality management systems – Requirements for regulatory purposes (ISO 13485:2016)
- DIN EN 1970:2000 + A1:2007 – Adjustable beds for disabled persons
- DIN EN 60601-2-52:2010 – Particular requirements for basic safety and essential performance of electrically operated medical beds
The specified products were developed, manufactured and tested on the basis of the management system in accordance with:
- DIN EN ISO 9001:2015 certificate no. 73 100 1297
- DIN EN ISO 14001:2015 certificate no. 73 104 1297
Optional Extras
- CPR emergency back rest unlocking system
- Bed linen holder
- Integrated overbed light
- Underbed night light – motion and light sensored
- Self help pole
- Rail Covers – Padded or Mesh or combination of both
- Head and footend covers
Care & Warranty
Please see below for warranty and maintenance information across our Healthcare Bedding range:
WARRANTY INFORMATION
Our range of Malsch beds come with a 5-year warranty on the frame, alongside a 2-year warranty on the motor/electrics. Parts and labour are covered within the warranty. However, for clients outside of metro Perth there will be a labour/transport fee.
PRODUCT CARE & MAINTENANCE
For individual homecare use we recommend general cleaning of your bed frame and surround. Vacuuming the bed mechanisms to reduce dust build-up, and wiping down on a regular basis with a damp cloth and gentle cleaning solution as standard. Any oiling of nuts and bolts should be done with a silicon based oil e.g., WD-40 Specialist Silicone Spray. All purchases will receive a digital instruction manual when you receive delivery of your bed.
For care facilities, a deeper cleaning regime in line with aged care and disability facility standards is recommended. This includes at minimum the above.
SERVICING
We recommend that our customers conduct a service of their bed every 18 months to 2 years. A general bed service & maintenance can be booked within the Perth metropolitan area, with the first half-hour of labour charges at $195 inclusive of minor parts. In the unlikely event that further time is required or other parts are needed, additional cost of $25 per 15 minutes thereafter is applicable and required parts chargeable.
*** Please note, European Bedding abides by Australian Consumer Law, meaning our valued customers are always fully protected at all times. Whilst our products are known for their quality and reliability, we also provide a warranty to protect your purchase and to offer peace of mind.
