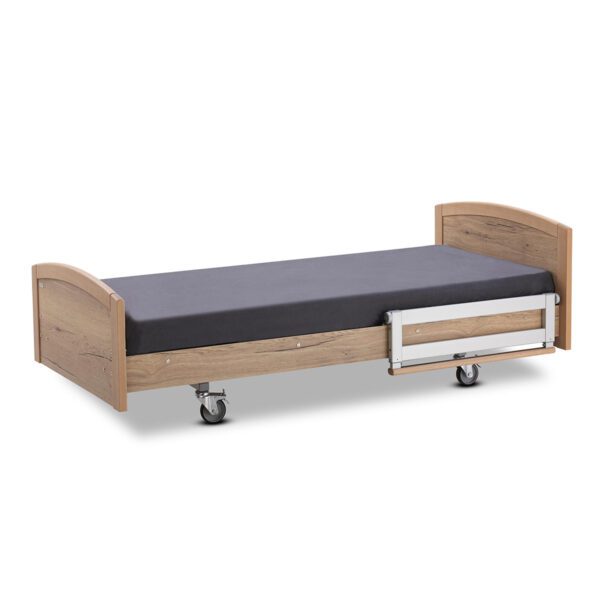

Ayleen 500
The Ayleen 500 is the basic option of our homecare range. Without compromising on quality, this care bed is extremely stable and safe and this is reflected in it safe working load of 180kgs. It comes with a wooden slat base in the single version and as a metal mesh base in the king single and double versions allowing for excellent air circulation.
Loading...
Designed for domestic use, the Ayleen 500 is a four section electrically operated German-made adjustable bed with high low function that ranges from 40cm-80cm or 30cm-70cm. The backrest, knee break and manually adjustable leg raise functions are standard. As well as the mattress compensation technology which prevents the mattress from sliding down the bed and thus reduces shear and friction. There are lockable castors all around allow for easy movement and 160mm under bed clearance ensures all hoist equipment will easily fit underneath.
Also available with feet rather than castors where required. The German designed motor technology includes a battery back up and the lockable hand controls allows for that piece of mind.
| Low position | 40cm |
|---|---|
| Working height / Care height | 78cm |
| Falls prevention | N/A |
| Transfer position | N/A |
| Comfort sitting position / hoist position | N/A |
| Auto contouring | Standard |
| Mattress regression | Standard |
| Reverse Trendelenburg positioning (lockable) | N/A |
| Trendelenburg positioning (lockable) | N/A |
| Wall hugging low to high to low functionality | Standard |
| CPR emergency lowering | N/A |
| Comfort mounting height | 33cm |
| Bed extension 10cm /20cm | Optional |
| Double castors | N/A |
| Hidden castors | N/A |
| Single castors | 100mm |
| Central brake | Standard |
| Axil brake | N/A |
| EVGS side rails (with one-hand operation) | N/A |
| Vertical VGS side rails | N/A |
| Fold down GS side rails | N/A |
| Full-length side rail | N/A |
| Drive system with safety extra-low voltage | Standard |
| Hand controller with locking function | Standard |
| Under bed lighting | Optional |
| Bed linen holder | N/A |
| Sleeping surface Single | 200 x 90cm |
| Outer dimensions Single | 206 x 100cm |
| Safe working load | Max. 180kg |
| Easy underneath access | 145mm |
| Total weight with bed extension and without accessories | approx 120 kg |
| Size | Single (200 x 90cm), King Single (200 x 107cm), Double (200 x 140cm) |
Key Facts & Specifications
- 4 Way Electric Adjustable base
- Reclining Surface – Flexible beech wood slats (Single size) or mesh decking (King Single & Double size ) for good air circulation
- 40-80cm High-Low range with lockable castors
- 33-73cm High- Low range when fitted with stabilising feet to remain in position
- Mattress compensation / auto regression technology to eliminate sheering and friction
- Auto contouring comfort feature function
- Extra foot section manual 10 position adjustability
- Wall hugging high/low mobilising function
- Easy manoeuvrability on lockable castors
- Robust chassis
- Standard 9V Battery Back-up
- Low-voltage system for increased safety for occupants and care staff
- Simple cable concept to avoid cable clutter
- 150mm underbed clearance
- Pre-installed fittings for light fixture / self-help pole / IV pole etc.
- Compatible with specialist mattress systems
- Fold down split mobilising side rails (GS) – bed can have no rails or any number 1- 4 split rails
- Ayleen wood-laminate or fabric surround design and colour
- Safe working load of 180kg
STANDARDS COMPLIANCE
- DIN EN ISO 13485:2016 A/C 2018 – Medical devices – Quality management systems – Requirements for regulatory purposes (ISO 13485:2016)
- DIN EN 1970:2000 + A1:2007 – Adjustable beds for disabled persons
- DIN EN 60601-2-52:2010 – Particular requirements for basic safety and essential performance of electrically operated medical beds
The specified products were developed, manufactured and tested on the basis of the management system in accordance with:
- DIN EN ISO 9001:2015 certificate no. 73 100 1297
- DIN EN ISO 14001:2015 certificate no. 73 104 1297
Optional Extras
Lockable castors
Care & Warranty
Please see below for warranty and maintenance information across our Healthcare Bedding range:
WARRANTY INFORMATION
Our range of Malsch beds come with a 5-year warranty on the frame, alongside a 2-year warranty on the motor/electrics. Parts and labour are covered within the warranty. However, for clients outside of metro Perth there will be a labour/transport fee.
PRODUCT CARE & MAINTENANCE
For individual homecare use we recommend general cleaning of your bed frame and surround. Vacuuming the bed mechanisms to reduce dust build-up, and wiping down on a regular basis with a damp cloth and gentle cleaning solution as standard. Any oiling of nuts and bolts should be done with a silicon based oil e.g., WD-40 Specialist Silicone Spray. All purchases will receive a digital instruction manual when you receive delivery of your bed.
For care facilities, a deeper cleaning regime in line with aged care and disability facility standards is recommended. This includes at minimum the above.
SERVICING
We recommend that our customers conduct a service of their bed every 18 months to 2 years. A general bed service & maintenance can be booked within the Perth metropolitan area, with the first half-hour of labour charges at $195 inclusive of minor parts. In the unlikely event that further time is required or other parts are needed, additional cost of $25 per 15 minutes thereafter is applicable and required parts chargeable.
*** Please note, European Bedding abides by Australian Consumer Law, meaning our valued customers are always fully protected at all times. Whilst our products are known for their quality and reliability, we also provide a warranty to protect your purchase and to offer peace of mind.
